How to dismiss the phone call prompt during a Xcode UITest

Posted: | Author: | Filed under: iOS, Swift, UITests | No Comments »

Sometimes you offer your users the ability to make a phone call directly from your app. For example there could be a “Call Help Center” button that a user can press to make the call. When the user taps on that button the system will prompt a dialog where the user can either cancel or make the call.

When you write a UITest for this button you want to test that tapping the button will initiate the call. But you don’t actually want to make the call. So you need a way to cancel the call when the dialog shows up.

Normally you would add a UIInterruptionMonitor at the beginning of the UITest. This works for a lot of system dialogs (e.g. the dialog that asks the user for permission to use his location). But in this case it does not work. The UIInterruptionMonitor’s closure is never executed.

The reason is quite simple. UIInterruptionMonitor only works with dialogs that are presented by your app. All the permission dialogs are presented within your app’s scope, so the UIInterruptionMonitor can handle them. The phone call dialog however is presented from outside your app’s scope. You need to access the dialog via the Springboard which is now possible with Xcode 9.

You can test the help center button and dismiss dialog like this:

func testCallHelpCenterButton() {
    let app = XCUIApplication()
    let springboard = XCUIApplication(bundleIdentifier: "com.apple.springboard")

    app.launch()
    app.buttons["Call Help Center"].tap()

    // check that the dialog is presented and tap the 'Cancel' button
    let cancelButton = storyboard.buttons["Cancel"]
    XCTAssert(cancelButton.exists)
    cancelButton.tap()
}

Testing Push Notifications with Xcode UITests

Posted: | Author: | Filed under: iOS, Swift, Tools, UITests | Tags: | 4 Comments »

I recently worked on an app for a big retailer that made intensive use of remote notifications (aka push notifications). One use case: Whenever you use the app to pay for your shopping you will receive a remote notification when the payment was successful. Tapping on the remote notification would launch the app and show the receipt for the transaction.

As I used a lot of Xcode UITests on this project I was wandering if it is possible to test the remote notification handling in an UITest. It turns out that it is possible. There are two things that need to happen during the test:

1. Trigger a mock remote notification
2. Tap on the remote notification when it is received

Triggering a remote notification is relative easy thanks to the work of the fine folks at noodlework. They build a framework to play around with the Apple Push Notification service (APNs). Using their framework (NWPusher) makes it possible to trigger a remote notification right from a UITest class.

There is one new feature that comes to the XCUITest framework with Xcode 9: Multi App Testing. It is now possible to interact with other apps (and the Springboard) when running a UITest 🎉. So with Xcode 9 we can wait for the remote notification to appear and tap on it. Yay!

So, let’s do it.

Set up a dummy application (if needed)

I’m assuming that you already have an app that uses remote notifications. Otherwise just setup a simple app like I did. My app has a main view controller (with a gray background) and three child view controllers with different background colors that are presented modally based on the remote notification that was received:

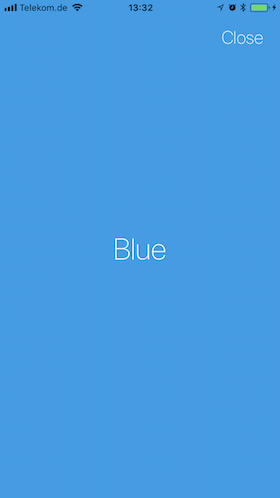

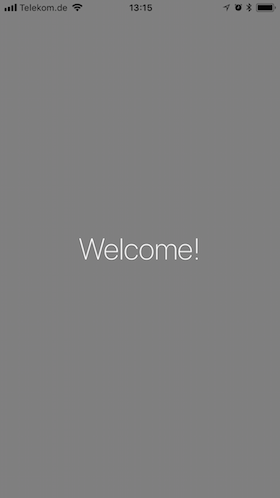

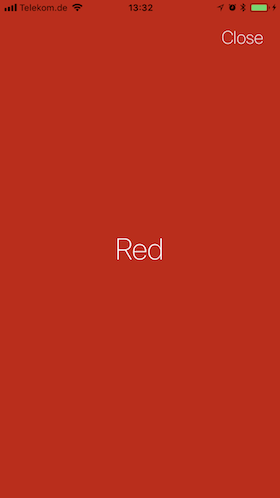

My remote notification’s payload contains a key vcType that can have three values red, blue or green. When you tap on the remote notification the app looks for that key to determine which view controller to present.

This is the remote notification payload that makes the app present a red view controller:

{
   "aps" : { "alert" : "Hello Red" },
   "vcType" : "red"
}

If you are setting up a new app for this remember to activate the PushNotification capabilities in your target.

Trigger a remote notification in a UITest

1. Install NWPusher
Add NWPusher to the UITest target of your app. I use Carthage to do that but you can also use CocoaPods or add their source files directly to your app.

2. Add push notification certificate to your app
To trigger a remote notification you need to add a valid Apple Push Notification service SSL certificate to the UITest target of your app.

There is a detailed description on how to do this in the NWPusher repo, so I keep it short here:
– Create a Development APN Certificate on the Apple developer center (if you do not already have created one).
– Download the certificate and add it to your Keychain
– Export the certificate to a PKCS12 file. Set a password (and remember it ;-))
– Add the p12 file to the UITest target.

Now you are ready to trigger a Remote Notification right from your UITest’s code.

3. Trigger a remote notification from a UITest
I created a helper function to trigger a remote notification because I want to trigger multiple notifications:

func triggerPushNotification(withPayload payload: String, deviceToken: String) {
   let uiTestBundle = Bundle(for: PushNotificationUITests.self)
   guard let url = uiTestBundle.url(forResource: "pusher.p12", withExtension: nil) else { return }

   do {
      let data = try Data(contentsOf: url)
      let pusher = try NWPusher.connect(withPKCS12Data: data, password: "pusher", environment: .auto)
      try pusher.pushPayload(payload, token: deviceToken, identifier: UInt(arc4random_uniform(UInt32(999))))
   } catch {
      print(error)
   }
}

The code loads the certificate file into a Data object, connects to NWPusher’s service and triggers the remote notification.

You might have noticed that this function expects a deviceToken that is needed for the NWPusher service. That is a bit of a problem, because the deviceToken changes everytime you install the app or run the test on a different device.

To get around this I use a dirty hack. I do not really like this but I could not think of another way to make the deviceToken available to the UITest. If you have a better idea, please let me know in the comments!

To make the deviceToken accessible to the UITest I add a launch argument “isRunningUITests” when launching the app from a UITest. The app checks if the launch argument is present and if it is, adds a tiny UILabel to its root view controller and sets the label’s text to the device token. The UITest class then can read the deviceToken from that label. Shudder. Really ugly, I know.

The alternative would be to manually set the deviceToken when running the UITests. Not an option.

So now we can trigger a remote notification from a UITest class. Neat!

One more thing: When you run the app for the first time a system dialog will pop up to ask the user’s permission to send remote notifications. This also happens during a UITest, so we have to dismiss this dialog during the test.

I added a helper function that dismisses the system dialog:

func allowPushNotificationsIfNeeded() {
   addUIInterruptionMonitor(withDescription: "“RemoteNotification” Would Like to Send You Notifications") { (alerts) -> Bool in
      if(alerts.buttons["Allow"].exists){
         alerts.buttons["Allow"].tap()
         return true
      }
      return false
   }
   XCUIApplication().tap()
}

The tap on the XCUIApplication seems a bit strange but you have to interact with the app after setting up the interruption monitor to make it work.

Write the UITest that tests the 3 different remote notifications

Now we can write a UITest that does the following steps:

1. Hold a reference to the app and the springboard
2. Get the deviceToken from the app
3. Close the app
4. Trigger a “red” remote notification
5. Tap on the notification
6. Assert that the red view controller is shown
7. Close the app
8. Trigger a “green” remote notification
9. Tap on the notification
10. Assert that the green view controller is shown
11. Close the app
12. Trigger a “blue” remote notification
13. Tap on the notification
14. Assert that the blue view controller is shown

func testPushNotifications() {
   let app = XCUIApplication()
   app.launchArguments.append("isRunningUITests")
   app.launch()

   // access to the springboard (to be able to tap the notification later) [1]
   let springboard = XCUIApplication(bundleIdentifier: "com.apple.springboard")

   // dismiss the system dialog if it pops up
   allowPushNotificationsIfNeeded()

   // get the current deviceToken from the app [2]
   let deviceToken = app.staticTexts.element(matching: .any, identifier: "tokenLabel").label

   // close app [3]
   XCUIDevice.shared.press(XCUIDevice.Button.home)
   sleep(1)

   // trigger red Push Notification [4]
   triggerPushNotification(
      withPayload: "{\"aps\":{\"alert\":\"Hello Red\"}, \"vcType\":\"red\"}",
      deviceToken: deviceToken)

   // tap on the notification when it is received [5]
   springboard.otherElements["PUSHNOTIFICATION, now, Hello Red"].tap()

   // check if the red view controller is shown [6]
   XCTAssert(app.staticTexts["Red"].exists)

   // dismiss modal view controller and close app [7]
   app.buttons["Close"].tap()
   XCUIDevice.shared.press(XCUIDevice.Button.home)
   sleep(1)

   // trigger green Push Notification [8]
   triggerPushNotification(
      withPayload: "{\"aps\":{\"alert\":\"Hello Green\"}, \"vcType\":\"green\"}",
      deviceToken: deviceToken)

   // tap on the notification when it is received [9]
   springboard.otherElements["PUSHNOTIFICATION, now, Hello Green"].tap()

   // check if the green view controller is shown [10]
   XCTAssert(app.staticTexts["Green"].exists)

   // dismiss modal view controller and close app [11]
   app.buttons["Close"].tap()
   XCUIDevice.shared.press(XCUIDevice.Button.home)
   sleep(1)

   // trigger blue Push Notification [12]
   triggerPushNotification(
      withPayload: "{\"aps\":{\"alert\":\"Hello Blue\"}, \"vcType\":\"blue\"}",
      deviceToken: deviceToken)

   // tap on the notification when it is received [13]
   springboard.otherElements["PUSHNOTIFICATION, now, Hello Blue"].tap()

   // check if the blue view controller is shown [14]
   XCTAssert(app.staticTexts["Blue"].exists)

   // dismiss modal view controller
   app.buttons["Close"].tap()
}

I added sleep statements after closing the to make sure that the app is fully in background mode before triggering the remote notifications.

Now we can run the test and Voila! UITests that test the handling of remote notifications! Just don’t try to run the tests in a Simulator as remote notifications only work on real devices.

You can checkout the demo app including the UITest here. Make sure to add the demo app as your own app to your developer account and to import your own APN development certificate (the p12 file) to the project to make it work.

Xcode UITests: How to check if a UISwitch is on

Posted: | Author: | Filed under: Swift, UITests, Xcode | No Comments »

A simple scenario: You are writing a UITest that should check if a UISwitch is switched on.

In a UnitTest you would simply do this:

XCTAssert(yourSwitch.isOn)

When you are running a UITest you cannot do that, because during a running UITest you cannot access the UISwitch directly. Xcode only gives you access to your app’s UI elements via the XCUIElement class. That class is used for all accessible UI elements so it does not have a isOn property like UISwitch has.

So how do you test that the UISwitch is on?

It’s actually pretty easy, but not really obvious. XCUIElement conforms to XCUIElementAttributes which gives you access to a value property of type Any?

So, as value can literally be Any(thing) I tried to cast it to a Bool, because isOn also is a Bool, right?

Not working! Turns out that when you access a UISwitch in your UITest its value property is of type NSTaggedPointerString. Which is a subclass of NSString and can be cast to String (when you are using Swift). So the Bool isOn value has been mapped to a “0” or “1” String.

To test if the first UISwitch in your current view has been switched on, you can do this in a UITest:

let firstSwitch = app.switches.element(boundBy: 0)
XCTAssertEqual(firstSwitch.value as! String, "1")

Enable the Swipe Back Gesture (aka Interactive Pop Gesture) when using a UINavigationController with custom back button

Posted: | Author: | Filed under: iOS, Swift | Tags: , | 2 Comments »

Who doesn’t love the “Swipe Back” gesture to navigate back to the previous view controller? I rarely use the back button in the left upper corner of the screen anymore. Especially when you are holding your phone in one hand it is much more easy to just swipe back.

The best thing is that as a developer you don’t have to do anything to enable this swipe back functionality as it already part of UINavigationController.

On initialization UINavigationController installs a UIScreenEdgePanGestureRecognizer on its view to handle the interactive pop gesture (aka “Swipe Back” gesture). You can access the gesture recognizer via the interactivePopGestureRecognizer property.

Now, when you decide to replace the default back button with your own custom back button you will see that the “Swipe Back” Gesture is not working anymore. Apparently the UIScreenEdgePanGestureRecognizer’s delegate only allows the gesture to be recognized when it sees that the default back button is being used. Bummer!

To make the “Swipe Back” work again you have to bypass the delegate that disables the gesture. If found some suggestions that would simply set the delegate to nil. This seems to work at first. But when you start playing around with your app after doing that you will eventually see that the app freezes and does not recognize ANY touches anymore. This happens when you swipe back while the navigation controller is pushing a view controller. Not good!

So you have to set the delegate yourself and implement gestureRecognizerShouldBegin(_:) to disable the gesture whenever the navigation controller is pushing a view controller.

The easiest way to do this is to subclass UINavigationController:

class InteractivePopNavigationController: UINavigationController {

    // 1
    var isPushingViewController = false

    override func viewDidLoad() {
        super.viewDidLoad()
        // 3
        delegate = self
        // 5
        interactivePopGestureRecognizer?.delegate = self
    }

    // 2
    override func pushViewController(viewController: UIViewController, animated: Bool) {
        isPushingViewController = true
        super.pushViewController(viewController, animated: animated)
    }
}

// 6
extension InteractivePopNavigationController: UIGestureRecognizerDelegate {
    func gestureRecognizerShouldBegin(gestureRecognizer: UIGestureRecognizer) -> Bool {
        guard gestureRecognizer is UIScreenEdgePanGestureRecognizer else { return true }
        return viewControllers.count > 1 && !isPushingViewController
    }
}

// 4
extension InteractivePopNavigationController: UINavigationControllerDelegate {
    func navigationController(navigationController: UINavigationController, didShowViewController viewController: UIViewController, animated: Bool) {
        isPushingViewController = false
    }
}

To block the “Swipe Back” gesture there is a boolean property isPushingViewController that is true when the navigation controller is pushing a view controller. [// 1]

Setting the property to true is easy. We simply override pushViewController(_:animated:) and set isPushingViewController to true [// 2]

To be able to set it back to false when the view controller has been pushed we have to know when the push is completed. Luckily there is a UINavigationControllerDelegate method that we can use. So we set our UINavigationController subclass’ delegate to self [// 3] and implement navigationController(_:didShowViewController:animated:) to set isPushingViewController back to false [// 4]

Now all that is left is to also set the interactivePopGestureRecognizer‘s delegate to self [// 5] and to only allow the gesture when isPushingViewController is false. And while we are at it we also make sure that the swipe back makes sense. In other words we check if the navigation controller has more than one view controller on his stack. Otherwise we ignore the gesture. [// 6]

Yay, “Swipe Back” is back!

But wait a minute. What happens when someone is using this UINavigationController subclass and needs to set the delegate themselves:

let navigationController = InteractivePopNavigationController()
navigationController.delegate = self

This won’t work, because we are overwriting the delegate in our subclass’ viewDidLoad method.

To make this work, we need to keep a reference to the delegate before overwriting it and forward all delegate method calls to it:

class InteractivePopNavigationController: UINavigationController {

    var isPushingViewController = false
    weak var externalDelegate: UINavigationControllerDelegate?

    // 1
    override var delegate: UINavigationControllerDelegate? {
        didSet {
            if !(delegate is InteractivePopNavigationController) {
                externalDelegate = delegate
                delegate = oldValue
            }
        }
    }

    override func viewDidLoad() {
        super.viewDidLoad()
        delegate = self
        interactivePopGestureRecognizer?.delegate = self
    }

    override func pushViewController(viewController: UIViewController, animated: Bool) {
        isPushingViewController = true
        super.pushViewController(viewController, animated: animated)
    }
}

extension InteractivePopNavigationController: UIGestureRecognizerDelegate {
    func gestureRecognizerShouldBegin(gestureRecognizer: UIGestureRecognizer) -> Bool {
        guard gestureRecognizer is UIScreenEdgePanGestureRecognizer else { return true }
        return viewControllers.count > 1 && !isPushingViewController
    }
}

// 2
extension InteractivePopNavigationController: UINavigationControllerDelegate {
    func navigationController(navigationController: UINavigationController, didShowViewController viewController: UIViewController, animated: Bool) {
        isPushingViewController = false
        externalDelegate?.navigationController?(navigationController, didShowViewController: viewController, animated: animated)
    }

    func navigationController(navigationController: UINavigationController, willShowViewController viewController: UIViewController, animated: Bool) {
        externalDelegate?.navigationController?(navigationController, willShowViewController: viewController, animated: animated)
    }

    func navigationControllerSupportedInterfaceOrientations(navigationController: UINavigationController) -> UIInterfaceOrientationMask {
        return externalDelegate?.navigationControllerSupportedInterfaceOrientations?(navigationController) ?? visibleViewController?.supportedInterfaceOrientations() ?? .All
    }

    func navigationControllerPreferredInterfaceOrientationForPresentation(navigationController: UINavigationController) -> UIInterfaceOrientation {
        return externalDelegate?.navigationControllerPreferredInterfaceOrientationForPresentation?(navigationController) ?? self.preferredInterfaceOrientationForPresentation()
    }

    func navigationController(navigationController: UINavigationController, interactionControllerForAnimationController animationController: UIViewControllerAnimatedTransitioning) -> UIViewControllerInteractiveTransitioning? {
        return externalDelegate?.navigationController?(navigationController, interactionControllerForAnimationController: animationController)
    }

    func navigationController(navigationController: UINavigationController, animationControllerForOperation operation: UINavigationControllerOperation, fromViewController fromVC: UIViewController, toViewController toVC: UIViewController) -> UIViewControllerAnimatedTransitioning? {
        return externalDelegate?.navigationController?(navigationController, animationControllerForOperation: operation, fromViewController: fromVC, toViewController: toVC)
    }
}

We added two things:

// 1: We use the didSet property observer on the delegate property. Whenever the delegate is being set we check if our subclass itself is the delegate (we don’t do anything so the subclass will be set as its own delegate). If the delegate is of any other class we do not set it as delegate but keep a reference to it.

// 2: We implement the UINavigationControllerDelegate method that we use to see when the pushing is completing. In this method we set isPushingViewController back to false. We also forward the call to our external delegate.

Unfortunately we have to forward ALL methods that are defined in UINavigationControllerDelegate to out external delegate to make the external delegate fully functional. This is not an ideal solution. When Apple decides to add methods to UINavigationControllerDelegate in the future they will have to added here. Or they won’t be called when setting the delegate manually. In Objective-C you could use the NSInvocation API to handle this, but that API is not available in Swift. I have not found a way to forward all delegate methods to the external delegate in Swift. I you know a way to do this, please leave a comment!

And so, with a little bit of work, we can use the Interactive Pop Gesture (aka “Swipe Back”) even when we are not using the system default back button.

LLVM ERROR: Broken function found, compilation aborted!

Posted: | Author: | Filed under: Swift | Tags: , | 2 Comments »

For my current project I use BuddyBuild for Continuous Integration and Delivery which work remarkably well. Until suddenly the builds started to fail in spite of all unit tests being green and everything building without problems locally on my machine.

It took me a while to fix the problem and I am still not 100% sure what the problem was but here is what I did. Normally I would not write a post about stuff I don’t fully understand, but because I could not find anything helpful on Google or StackOverflow about this problem I decided to write a post anyway. Maybe it can point someone with a similar problem into the right direction.

So here is what I did:

Looking at BuddyBuild’s logs I found the error message that was causing the build to fail:

Cannot allocate unsized type
%partial-apply.context = alloca %swift.opaque, align 8
Invalid bitcast
%3 = bitcast %swift.refcounted* %1 to %swift.opaque, !dbg !1790
LLVM ERROR: Broken function found, compilation aborted!

Because this error was not occurring when I built the project locally on my machine I had to find out what the difference was when BuddyBuild was building the project.

As it turned out the Swift compiler was only crashing when building the project with the Release Configuration.

So I could reproduce the crash in Xcode when I build the project with the Release configuration. So far so good. But the problem was, that the error message that Xcode provided when the compiler chrashed was a lot less helpful than the error message provided by BuddyBuild’s log. It basically just tells you that it crashed without telling you where and why. Not good enough to find the problem and fix it.

xcodebuild and xcpretty to the rescue!

By building the project from the command line using xcodebuild and xcpretty:

set -o pipefail && xcodebuild -workspace 'MyApp.xcworkspace' -scheme 'MyApp' -configuration 'Release' -sdk iphonesimulator -destination platform='iOS Simulator',OS='9.3',name='iPhone 6' build | xcpretty -c

I was able to get the above error message on my machine so I could start to find out what the problem was.

So I knew which class was causing the problem but I still had to find what was making the compiler crash. I wish I could tell you a really elegant and clever way how I found the problem but to be honest I had to play the old “comment out all the new stuff and then bring it back line by line until the compiler breaks” game.

So I finally found the code snippet that was the cause of the compiler crash:

Crashing:

userDidCancelSelectedShopChange = selectNearestShop
   .flatMap(changeSelectedShop)

Not Crashing:

userDidCancelSelectedShopChange = selectNearestShop
   .flatMap { shopId -> Observable<ChangeSelectedShopResult> in
      self.changeSelectedShop(withNewSelectedShopId: shopId)
   }

Apparently using flatMap and directly passing a function as parameter was a bit too much for the LLVM compiler in this case. Which is strange because I do exactly the same in many other parts of the project without any problems. But when I switched to using a closure in this case the compiler crash was gone and everything was building again.

As I already wrote at the beginning of this post I don’t really know what caused the problem. I just managed to fix it somehow. So if any of you has an idea what made the compiler crash I would really appreciate your explanation in the comments.

Programmatically add a dynamic number of subviews to a UIScrollView using Auto Layout

Posted: | Author: | Filed under: iOS, Swift | Tags: , , | No Comments »

Auto Layout and UIScrollView seem to be a popular, but sometimes problematic couple. So here is another post about this topic. This time we will take a couple of subviews, add them to a UIScrollView and make everything work by programmatically adding layout constraints.

Because I am a lazy guy, we will use SnapKit (a.k.a. TheFrameworkFormerlyKnownAsMasonry) for the Auto Layout stuff. And because I get bored easily and I have already written a post about a vertical UIScrollView with Auto Layout, we’ll do a horizontal UIScrollView this time. Yay!

So, let’s take 4 empty UIViews and give them each a different background color, so that we can see the scrolling. To make things simple we make each subview the same size as the scrollview (so each subview covers the whole visible area).

Here is the code, you’ll find some explanations below it:

import UIKit
import SnapKit

class ViewController: UIViewController {

    let scrollView = UIScrollView()
    let subViews = [UIView(), UIView(), UIView(), UIView()]
    let colors = [UIColor.greenColor(), UIColor.blueColor(), UIColor.redColor(), UIColor.orangeColor()]

    override func viewDidLoad() {
        super.viewDidLoad()

        // 1
        view.addSubview(scrollView)
        scrollView.snp_makeConstraints { (make) in
            make.edges.equalTo(view)
        }

        // 2
        subViews.enumerate().forEach { index, subview in
            subview.backgroundColor = colors[index]
            // 3
            scrollView.addSubview(subview)
            subview.snp_makeConstraints(closure: { (make) in
                // 4
                make.top.equalTo(0)
                make.size.equalTo(scrollView)
                switch index {
                // 5
                case 0:
                    make.left.equalTo(0)
                // 6
                case subViews.count - 1:
                    make.left.equalTo(subViews[index - 1].snp_right)
                    make.right.equalTo(0)
                // 7
                default:
                    make.left.equalTo(subViews[index - 1].snp_right)
                }
            })
        }
    }
}

First we add the UIScrollView to the UIViewController and set its size to the size of the UIViewController’s view. // 1
We iterate over the subviews // 2, add them to the UIScrollView // 3 and add the Auto Layout constraints following this 4 simple rules:

1. All subviews have a top constraint of 0 and a size constraint that is equal to the scroll view. // 4
2. The first subview (in other words the leftmost subview) has a left constraint of 0 // 5
3. The last subview (the rightmost subview) has a right constraint of 0 // 5
4. All other subviews have a left constraint to the right of the previous subview // 6

And that’s all. When you run this code you can rotate the device to see that the subview sizes and the UIScrollView’s contentSize are adjusted automatically. If you don’t want the UIViews to be resized you just have to give them a static size.

This example also works for a vertical UIScrollView. Just connect the top and bottom constraints of the subviews instead of the left and right constraints. See the blog post I mentioned above for more details.

Set a UIWebView’s height to the height of its HTML content using Auto Layout

Posted: | Author: | Filed under: iOS, Swift | Tags: , | 4 Comments »

In a previous post I described how to programmatically set the height of a UIWebView to fit the height of its HTML content.

This is a different approach using a Storyboard (and a little code). To make things a little bit more interesting I added an UIView that sits on top of the UIWebView and that should scroll out of view when the user scrolls the UIWebView. To make that happen we need an UIScrollView that contains the UIView and the UIWebView:

The UIView could be something like an iAd that you want to display on top of the web content but that should be scrolled out of the view when the user scrolls the web content.

Here is how to make it work:

  1. Connect the UIWebView from the nib to an outlet in your view controller.
  2. Disable scrolling in the UIWebView.
  3. Set the constraints on the `UIScrollView`, the `UIView` and the `UIWebView`:
    • The UIScrollView needs a top, a bottom, a leading and a trailing constraint to the UIViewController’s view.
    • The UIView needs a top, a leading and a trailing constraint to the UIScrollView. It also needs a width constraint that is equal to the UIScrollView’s width to avoid horizontal scrolling (See this post for an explaination). I also add a height constraint, because I want to have the UIView to have a constant height of 100pt.
    • The UIWebView needs a top constraint to the UIView’s bottom, a leading, a trailing and a bottom constraint to the UIScrollview. It also needs a height constraint that we will later set to the height of the HTML content

    The constraints should look like this:

    0FJCG

  4. Connect the UIWebView‘s height constraint to an outlet in your view controller.
  5. Set the view controller as UIWebViewDelegate.
  6. In webViewDidFinishLoad set the height constraint’s constant to the height of the contentSize of the scroll view inside the web view.
  7. Start Key-Value Observing on the contentSize to change the height, when height of the web view has to change because segments of the webpage change their size without reloading the page (like accordeons, or menus). Don’t forget to stop observing when the view controller gets deallocated.

Here is the code that you need:

import UIKit

var MyObservationContext = 0

class ViewController: UIViewController {

    @IBOutlet weak var webview: UIWebView!
    @IBOutlet weak var webviewHeightConstraint: NSLayoutConstraint!

    var observing = false

    override func viewDidLoad() {
        super.viewDidLoad()
        webview.scrollView.isScrollEnabled = false
        webview.delegate = self
        if let url = URL(string: "https://www.google.de/intl/de/policies/terms/regional.html") {
            webview.loadRequest(URLRequest(url: url))
        }
    }

    deinit {
        stopObservingHeight()
    }

    func startObservingHeight() {
        let options = NSKeyValueObservingOptions([.new])
        webview.scrollView.addObserver(self, forKeyPath: "contentSize", options: options, context: &MyObservationContext)
        observing = true;
    }

    func stopObservingHeight() {
        webview.scrollView.removeObserver(self, forKeyPath: "contentSize", context: &MyObservationContext)
        observing = false
    }

    override func observeValue(forKeyPath keyPath: String?, of object: Any?, change: [NSKeyValueChangeKey : Any]?, context: UnsafeMutableRawPointer?) {
        guard let keyPath = keyPath else {
            super.observeValue(forKeyPath: nil, of: object, change: change, context: context)
            return
        }
        switch keyPath {
        case "contentSize":
            if context == &MyObservationContext {
                webviewHeightConstraint.constant = webview.scrollView.contentSize.height
            }
        default:
            super.observeValue(forKeyPath: keyPath, of: object, change: change, context: context)
        }
    }
}

extension ViewController: UIWebViewDelegate {
    func webViewDidFinishLoad(_ webView: UIWebView) {
        webviewHeightConstraint.constant = webview.scrollView.contentSize.height
        if (!observing) {
            startObservingHeight()
        }
    }
}

In case you have difficulties implementing this, i put a working example on github

How to fade in a UITableView section index when the user scrolls

Posted: | Author: | Filed under: iOS, Swift | Tags: | No Comments »

When you have a UITableView with a lot of sections a section index can be very useful to jump quickly between sections. A good example for this is you iPhone’s address book.

But sometimes you want to hide the section index until the user scrolls the table view. The problem is that you can neither hide or show the section index directly nor officially access the UIView that holds the section index.

However there is a little trick to fade the section index in and out. UITableView has two methods that allow you to set the background and the text color of the section index. When you change the alpha of those two colors according to the UITableView’s contentOffset you can fade the section index when the user scrolls:

func scrollViewDidScroll(scrollView: UIScrollView) {
    let fadeInDistance: CGFloat = 100
    var alpha: CGFloat = 1
    if scrollView.contentOffset.y < 1 {
        alpha = 0
    } else if scrollView.contentOffset.y >= 1 && scrollView.contentOffset.y < fadeInDistance {
        alpha = scrollView.contentOffset.y / fadeInDistance
    }
    tableView.sectionIndexColor = UIColor(red: 0, green: 0, blue: 0, alpha: alpha)
    tableView.sectionIndexBackgroundColor = UIColor(red: 1, green: 1, blue: 1, alpha: alpha)
}

To initially hide the section index you have to set those two colors to UIColor.clearColor() in viewDidLoad:

func viewDidLoad() {
   super.viewDidLoad()
   tableView.sectionIndexColor = UIColor.clearColor()
   tableView.sectionIndexBackgroundColor = UIColor.clearColor()
}

UIScrollView and Auto Layout.

Posted: | Author: | Filed under: iOS, Swift | Tags: , , | 6 Comments »

Some people still seem to struggle when it comes to using Apple’s Auto Layout in a UIScrollView. There are a lot of questions on StackOverflow like “Why is my UIScrollView not scrolling when using AutoLayout?”

So here is a short explanation on how to use Auto Layout with a UIScrollView that should scroll vertically:

There are just a few things you have to take care of:

1. The topmost subview must have a top constraint with the UIScrollView
2. All other subviews must have a top constraint with the bottom constraint of the subview above them
3. The bottommost subview must have a bottom constraint with the UIScrollView

To ensure that the UIScrollView only scrolls vertically you have to make sure that its subviews don’t become wider than the UIScrollView.

Do not rely on left and right constraints to define the width of a subview. If for example you have a UILabel that has a lot of text and should break into several lines, it just won’t, even if you set its numberOfLines property to 0. That’s because the UIScrollView will give it enough space by allowing horizontal scrolling. So if you just set a left and right constraint on the UILabel the UIScrollView will scroll horizontal and the label will be very wide and have only 1 line.

Instead you should define a left and a width constraint. Set the width constraint to the width of the UIScrollView and the UILabel will not become wider than the UIScrollView. It will wrap into multiple lines instead.

If you follow those steps you don’t have to set the UIScrollView’s contentSize property any more to make the UIScrollView scroll. Auto Layout will handle that for you.

To make it more clear, here is an image with the constraints that you have to set:

scrollview_al

If you are using Masonry or SnapKit here is a code example on how to set the constraints programmatically:

topView.snp_makeConstraints { (make) -> Void in
    make.top.equalTo(0)
    make.left.equalTo(0)
    make.width.equalTo(scrollView)
}
label1.snp_makeConstraints { (make) -> Void in
    make.top.equalTo(topView.snp_bottom)
    make.left.equalTo(0)
    make.width.equalTo(scrollView)
}
label2.snp_makeConstraints { (make) -> Void in
   make.top.equalTo(label1.snp_bottom)
   make.left.equalTo(0)
   make.width.equalTo(scrollView)
}
label3.snp_makeConstraints { (make) -> Void in
    make.top.equalTo(label2.snp_bottom)
    make.left.equalTo(0)
    make.width.equalTo(scrollView)
    make.bottom.equalTo(0)
}

How to pass an error pointer to a function in Swift

Posted: | Author: | Filed under: Swift | Tags: , | No Comments »

With the introduction of throwable in Swift 2 more and more functions implement the new error handling. However there are still some functions that expect you to pass an error pointer. This is especially the case when you are using an Objective-C framework in your Swift project.

So for an example let’s look at AFNetworking’s AFHTTPRequestSerializer’s method requestWithMethod:URLString:parameters:error:

If you are trying to implement it like you would in Objective-C you are in for a surprise:

var error: NSError
let request = AFHTTPRequestSerializer.serializer().requestWithMethod("GET", URLString: "https://yourDomain.com", parameters: nil, error: &error)

This will cause the following compiler error:

'&' used with non-inout argument of type 'NSErrorPointer' (aka 'AutoreleasingUnsafeMutablePointer>')

The fix for this is much more simple than the error message suggests. The thing is, that error can be nil if the method is successful. Because of that, error has to be an Optional:

var error: NSError?
let request = AFHTTPRequestSerializer.serializer().requestWithMethod("GET", URLString: "https://yourDomain.com", parameters: nil, error: &error)

This works fine now
